LUMBERLOK TIMBER CONNECTORS

Stainless Steel Concealed Purlin Cleats

SSCPC

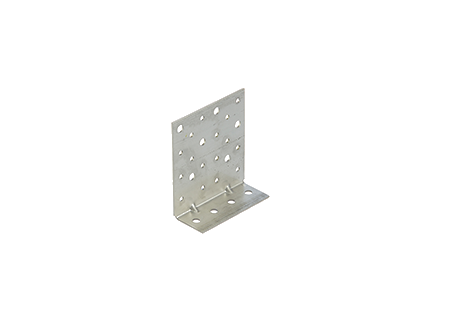

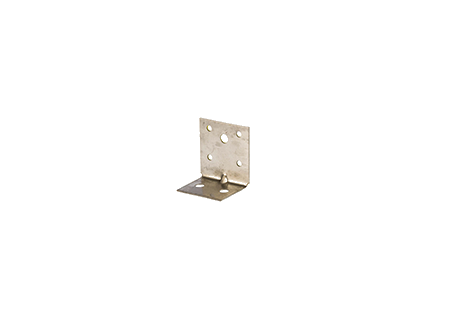

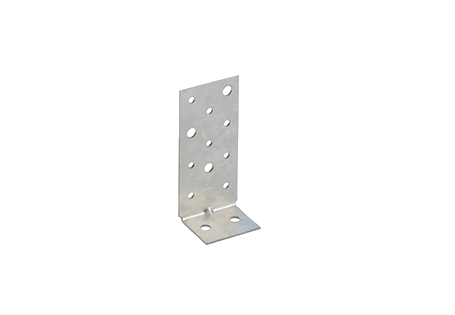

Reference Series: Stainless Steel Concealed Purlin Cleats SSCPC40S, SSCPC40, SSCPC80
CPC cleats provide an excellent purlin/rafter fixing in exposed situations, resisting any wind uplift. The cleats can also be used for exposed rafter to ridge beam connections. Fixed with Type 17-14g Hex Head Stainless Steel Screws and LUMBERLOK Stainless Steel Product Nails 30mm x 3.15mm diameter (not supplied with product). Also available in Zinc Coated. Refer below for Product Data and Installation.
Materials: 1.5mm Stainless Steel 304 (SSCPC40 & SSCPC80) 0.9mm Stainless Steel 304 (SSCPC40S)
Finish: Stainless Steel
Code Reports: View Code Report Table

Resources

Services

Need Help or Have a Question? Contact Customer Service

Load Table

Concealed Purlin Cleat Characteristic Loading

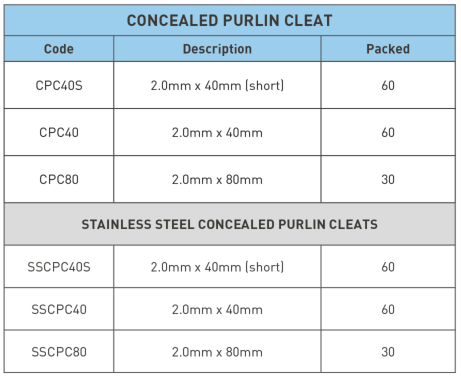

Concealed Purlin Cleat Product Availability

3-View Product Drawings

MiTek Stock # Download or View Files
SSCPC40 DWG DXF
SSCPC40S DWG DXF
SSCPC80 DWG DXF
