Portal Press

FOR SMALL TO MEDIUM SIZE TRUSS PLANTS An efficient partner to flow-through

REQUEST MORE INFORMATION
Features

FAST PRESSING FOR FLOW- THROUGH STYLE JIGS

  • 30T C-frame press head with regenerative valve and auto retract.
  • Two handed operation for operator safety.
  • Simple and robust construction.

SPECIFICATIONS

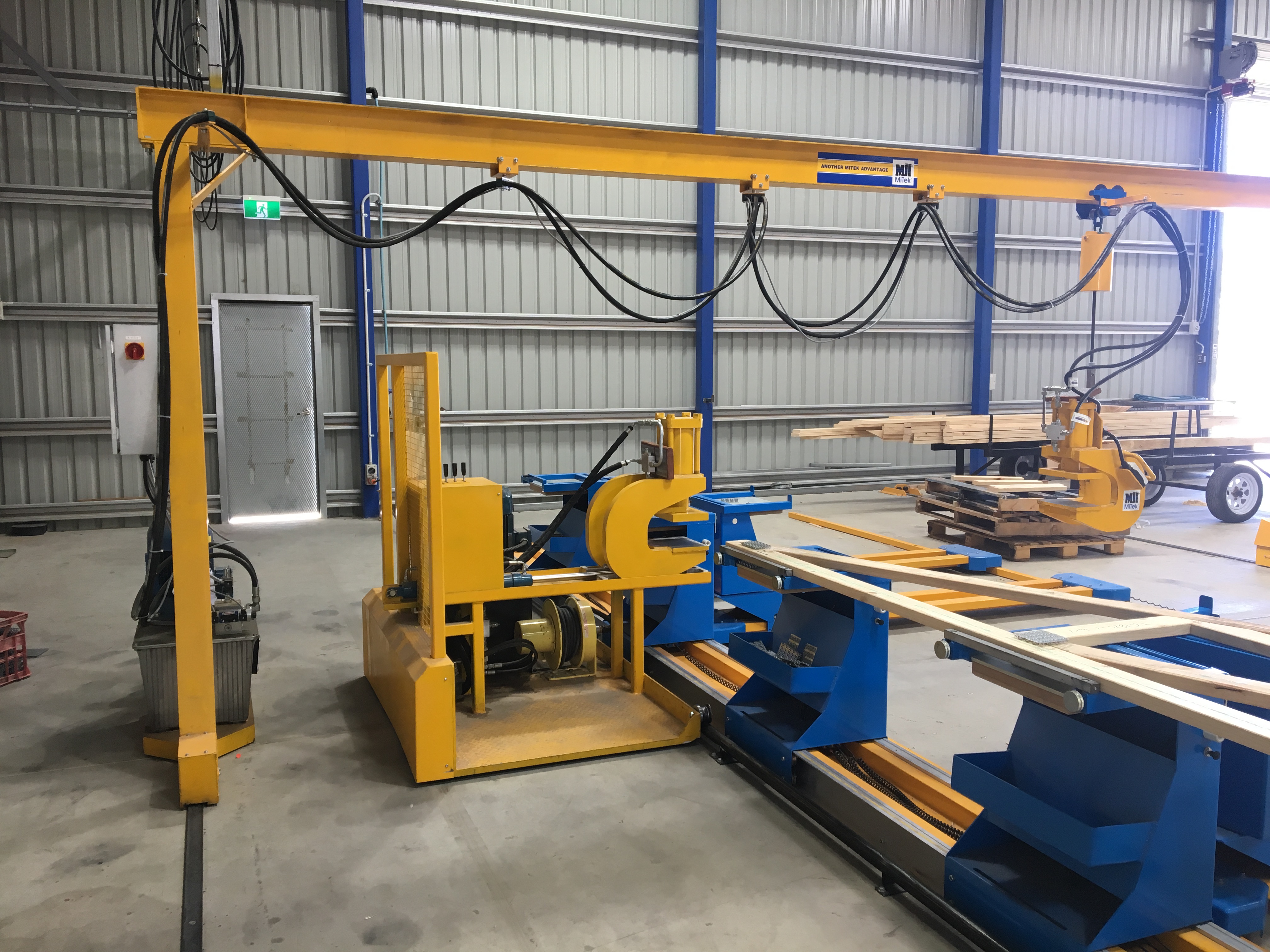

The Portal Press & Flo-Jig System is ideal for small to medium size truss plants. The MiTek Portal press is designed to work with flow-through style jigs, providing the pressing capably to any jig setup. The MiTek Portal press comes standard with a regenerative (regen) valve to speed up the pressing cycle and an auto-retract feature so the operator doesn’t need to manually open the C-Frame press before moving on to the next joint. These two features minimise pressing time and maximise output.

SPECIFICATIONS
Overall equipment dimensionslength 1600mm + Flo-Jig length, width 6300mm, height 2630mm.
Single press head30T press capacity (45T option).
ELECTRICAL Data
Hydraulic power pack motor7.5kW.
Power requirements415 V, 3 Phase, 20 A (includes the drive motors).
Maximum operating pressure165.5 bar (2400 PSI).
  • 45T press head.
  • 7.4M nominal width to suit jig with bottom chord press.
