MULTI-PURPOSE STATIONARY PRESS
- Hydraulic regeneration valve reduces pressing time.
- Adjustable pressure for different timber types.
- Safe, compliant, two hand electrical operation.

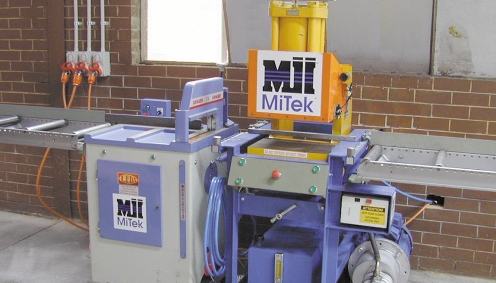

The Timber Stretcher is a multi purpose stationary press that is predominantly used for the butt joining of beams and construction of laminated beams.
In some circumstances it may also be used to fabricate simple trusses such as hips and jacks.
|Jig details||2 x Pneumatic Clamps used to clamp timber prior to press, with automatic release on pressing.|
|Press frame dimensions||– Length b/w unistrut 500mm 680mm – Working height 1000mm 1000mm|
|30 Ton Option||– Power required 415V,3Ph – PowerPack motor 7.5kW|
|60 Ton Option||– Power required 14A 415V,3Ph 28A – PowerPack motor 15kW|
|Both 30T & 60T||– Max operating pressure 2750psi-189bar – Platen size 310x180mm 420x300mm – Top to bottom platen opening 115mm 157mm|
- Conveyor and fence, 6m infeed, 6m outfeed, 305mm wide.
- In-line Docking Saw.
- Timber stop.
